Professional HD SDI camera 4x + HD SDI DVR 4-channel
| Manufacturer |
|
|---|---|
| Products availability | pre-order |
| Delivery time 1 - 3 weeks. | |
Yes! We Ship To
|
|
| Price excl. VAT | U$ 1,824.16 |
| Price incl. VAT | U$ 2,189.00 |
Accessories
1TB 3.5" SATA Hard Drive for CCTV U$ 141.90
2TB 3.5" SATA HDD for CCTV U$ 185.90
DVD Burner for CCTV U$ 38.50
20 m BNC cable U$ 16.50
HD-SDI signal amplifier U$ 196.90
Converter HD-SDI to HDMI U$ 163.90
Product description Professional HD SDI camera 4x + HD SDI DVR 4-channel
Professional HD SDI camera 4x + HD SDI DVR 4-channel - unique surveillance shop products for best price. ISO EN 9001:2008 certified online seller. The set of 4x high quality HD SDI cameras with sophisticated design. The record in Full HD resolution and night vision thanks to IR LEDs. 4x Profi HD SDI camera + HD SDI DVR 4-channel for external and internal use. This set offers complete CCTV solution in HD quality at a adequate price. The set includes HD-SDI IR Bullet cameras with resolution up to 1080p, for mounting on a wall or ceiling, inside or outside and have built-in IR LEDs for 25 meters vision in total darkness and HD DVR. DVR records in Full HD, makes backup to DVD and also has HD VGA and HDMI outputs.
The system includes:
1x 4-channel HD/HD DVR with 720/1080p resolution, mobile access, CMS - VGA and HDMI outputs - eSATA
4x Full HD IR Bullet Camera with Full HD resolution for indoor and outdoor use
4x 20 m BNC/BNC cables
1 x Fixing kit (screws, hooks and cable clips)
1x CCTV warning sign
Technical specifications:

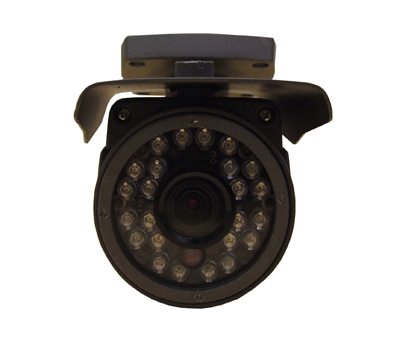

HD SDI Camera:
Model: XHDSYS4B
Resolution: 1080p
Water resistance: Yes
Vandal resistant: No
Mounting: for wall or ceiling
Dimensions: 70x78x170
Weight (kg): 0,56
Sensor type: 1080P Sensor
DSP Type: Advanced Xvision 1080P
DSP functions: Auto Electronic shutter, auto white balance, auto balance noise, wide dynamic range, digital noise reduction
Minimum illumination: 0.0003 Lux (IR off)
Night vision: 25m IR night vision
Lens type: Mega Pixel Lens
Lens/Size: 4 mm
Viewing angle: 64°
Operating voltage: 12V DC 500 mA
Recommended power supply: 12V DC 1250 mA (not included)
Video output: BNC plug
Audio Output: N/A
Power supply: DC plug
RS485 Control: No

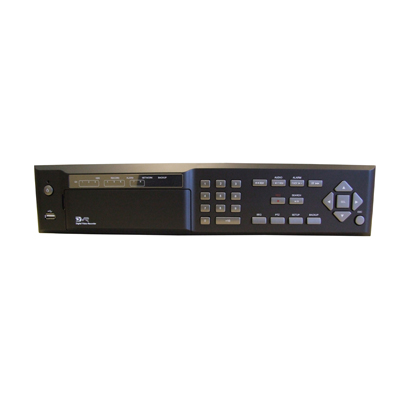

HD SDI DVR:
DVR: XHR204
Cameras / Audio Inputs: 4x HD-SDI inputs for cameras / 4x Audio Inputs
Alarm Inputs / Outputs: 4/1
Compression record: H264
Recording / Resolution: 60 fps/640x360, fps/720P 48, 20 fps/1080P
Recording modes: Alarm / Motion Detection / Continuous / scheduled, manual
Maximum recording capacity: 12TB (up to 6TB DVD burner)
Consumption of disk space for 24 hours: CIF (320x240) = 2-8 gigabytes, HD1 (720x288) = 4-15 gigabytes, D1 (720x576) = 7-29 gigabytes
Multi Play: 4 cameras
Backup methods: USB Flash Drive, DVD Writer, Network / Internet
Monitor Outputs: VGA, HDMI
Spot Monitor Output: N / A
Control: front panel, IR remote control, USB mouse, keyboard (optional)
Network / Internet: PC / Mac: Live image, email alarm, PTZ, Multi-site/DVR control, audio, prehávanie, backup, images, configuration.
iPhone / iPad: live painting, email alarm, PTZ, audio, prehávanie
Android: Live painting, email alarm, PTZ, audio, prehávanie, images
CMS Software Features: Live preview / playback / backup / configuration / Alarm / Motion warnings / PTZ control / Emap
Other features: PTZ (Speed Dome) control
Product dimensions (W - v - h mm): 432x98x340
Weight (kg): 4.1
Shipping Dimensions (w - v - h mm): 530x115x406
Shipping Weight (kg): 6.44
Operating voltage: 12V DC 3000 mA (power supply included)
