GPS locator for container IP66 waterproof + magnet

Product description GPS locator for container IP66 waterproof + magnet

GPS locator for container IP66 waterproof with magnet, provides accurate information on the current location of the goods being transported by sea in container. Container GPS tracker for tracking the shipment, is the tracking device with security features for freight, ship and road transport. A gps locator is a useful security solution that provides real-time tracking of the transported goods with detailed information. The 3G tracking device can be simply mounted inside the container using the integrated magnet. With WCDMA technology, this is a long-lasting GPS tracking device, that is able to provide accurate information about the current location of the goods being transported or container with a non-problem and efficient way.

GPS locator IP66 waterproof with magnet + battery capacity 3800 mAh. GPS tracking of containers in real time. Online GPS tracker (app in mobile) will provide the operation of GPS device in standby mode for almost 60 days. GPS + LBS double accurate positioning in real time. Once the online tracker has a good GPS signal, it will find it via GPS. If it does not have a GPS signal, it will find it via LBS.

The GPS module is equipped with an ultra-strong magnet and is very simple and flexible to install for GPS container monitoring. Thanks to a strong magnetic body, you can attach the 3G GPS locator from brand PROFIO ELECTRONICS to different locations of the object being tracked. The high level of IP66 protection allows the functionality of device even in extreme outdoor environments. The GPS tracking device finds its use for ship and rail container transportation. GPS tracker will also alert you to unauthorized interference into the installation or the removal of the device. In our e-shop you can buy top quality GPS locators. You just need a SIM card (data/phone) and gps tracking can be active right away.



GPS tracker with battery capacity up to 3800 mAh + ultra strong magnet + IP 66 protection



The 3G container GPS tracker is designed specifically for use on transporting containers.

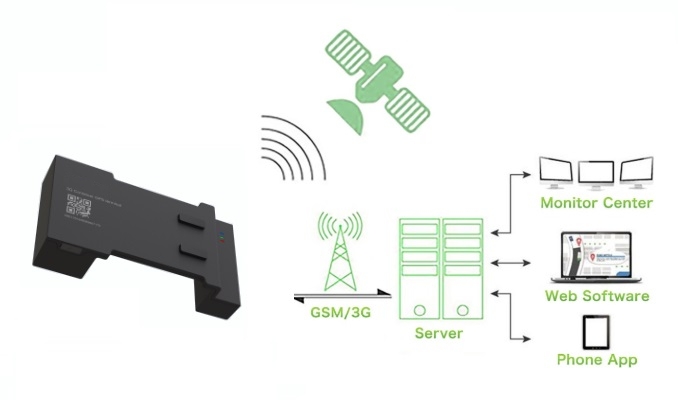

You have at disposal a free application for mobile phones (iOS, Android) called "Track Solid" or web interface "www.tracksolid.com" where you can conveniently watch the current location of the GPS locator in real time. A great solution for container transporters to keep track of their shipments and to provide up-to-date information to their clients.

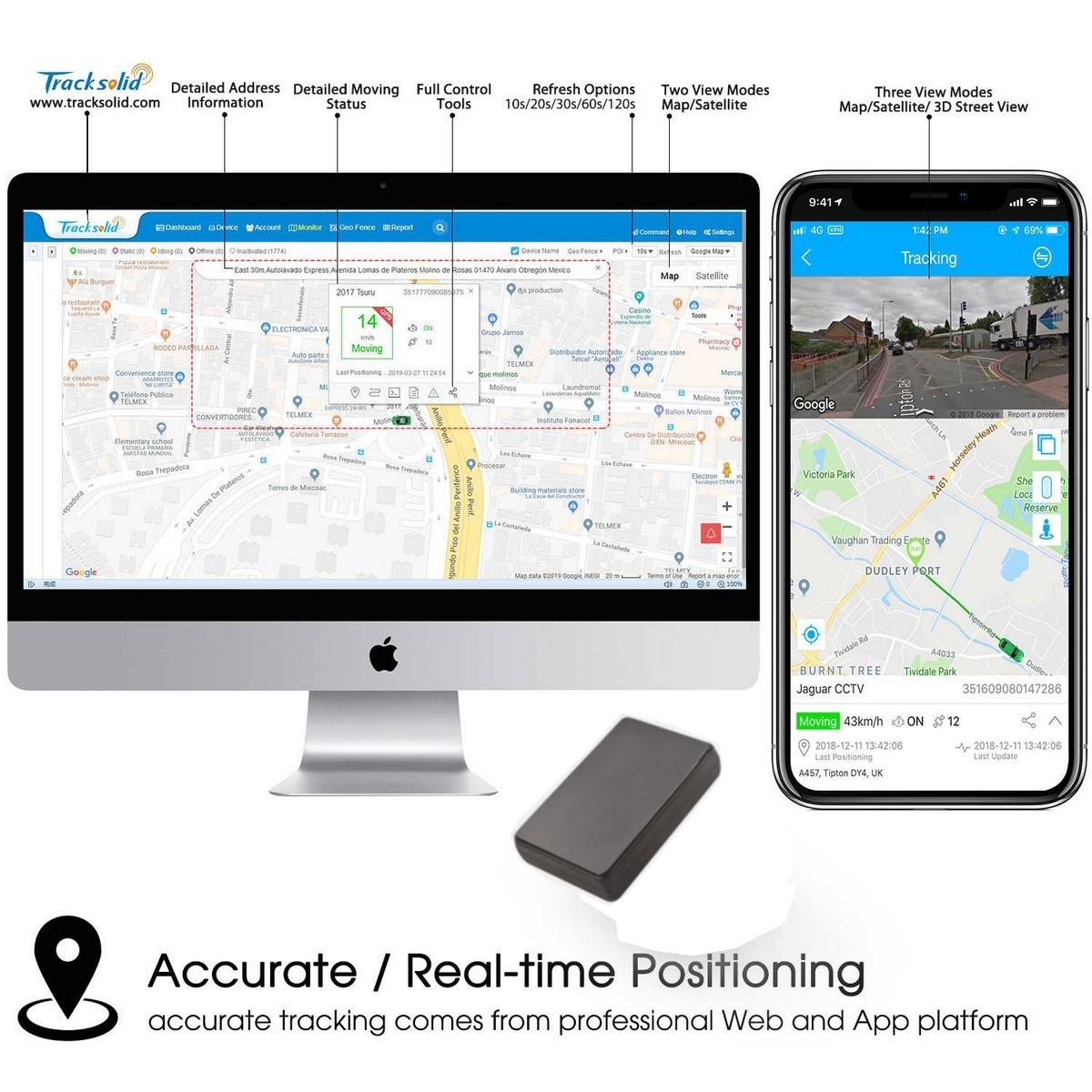

You can watch the tracker movement through the app on your mobile phone, tablet or PC.

The map displays its current location with time, speed and GPS coordinates.

Double positioning GPS and LBS

 This tracker supports GPS and LBS localization. GPS is the determination of the outside position with an accuracy of less than 10 meters. LBS is positioning (in places where there is no gps signal) with an accuracy of less than 500 meters.



Container open/close detection

Thanks to the sensor on the locator, you get an immediate warning when the door of your container is unexpectedly opened, so you can prevent the goods from being stolen from the container. A warning and a real-time position will be sent when the container door is opened or closed.

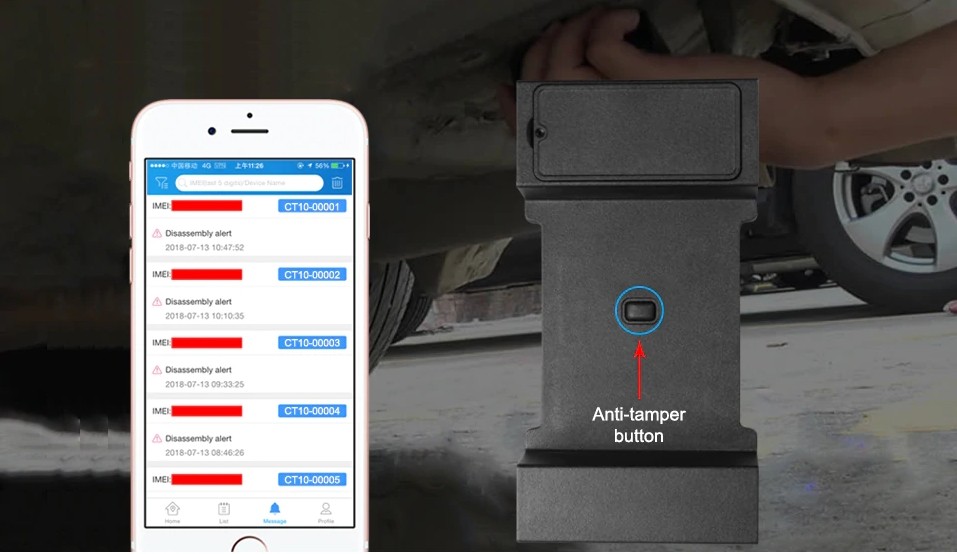

Tamper alert of the tracker removal from container

Tamper alert. You will receive a notification for any relocation of the tracking device from its original location. At installation is activated the alert with pressing the anti-tamper button, so the anti-tamper function will notify you when the gps locator is removed.

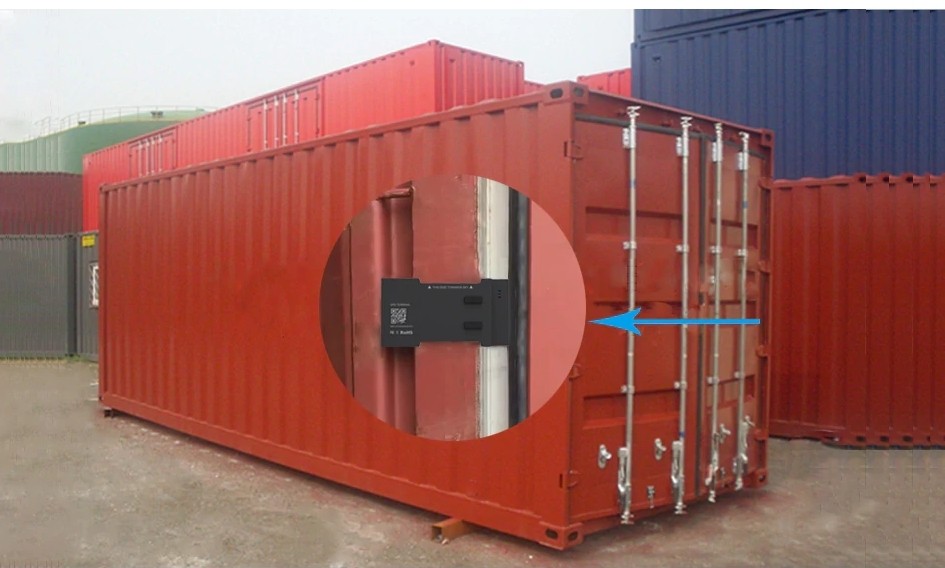

Magnetic holder

The ultra-strong magnetic holder allows flexible mounting on the metal surface of trucks or containers.

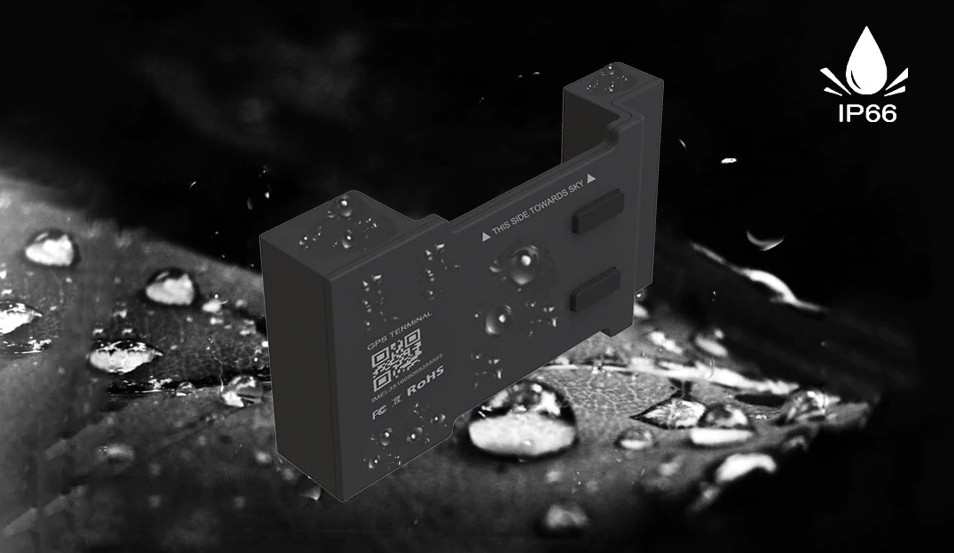

The IP66 standard provides water and dust resistance

This ensures a stable tracking device operation in any demanding environment. The GPS locator has excellent water resistance to ensure stable operation in harsh environments. It is not only an effective prevention of dust penetration, but you do not have to worry that the locator will be removed from container or truck by splashing water.

Global roaming

Non-problem global network coverage ensures permanent contact with the tracking device. Our GPS locator supports 2G GSM 850/900/1800/1900MHz and 3G WCDMA: data transfer BAND1/BAND2/BAND5/BAND8.

Long standby mode - 60 days

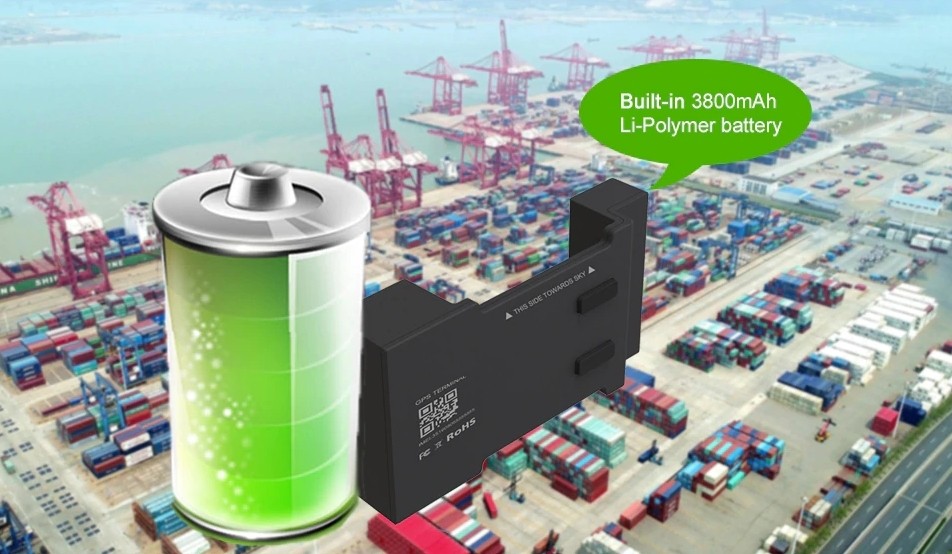

The tracker has a built-in Li-Polymer 3,7V 3800mAh rechargeable and removable battery that provides ultra-long standby time and smart power saving functionality. After a full charge, it can work for almost 30 days (recording GPS data every 6 hours in static mode).

3 working modes

GPS tracker automatically identifies the current state of the container environment and changes the mode between static mode (uploading GPS data every 3 hours), land mode (uploading GPS data every 10 minutes) and ship mode (uploading GPS data every 3 hours).



Specifications:

Communication system: M770B GSM & WCDMA communication module
Communication frequency: GSM: 850/900/1800/1900MHz WCDMA: BAND1/BAND2/BAND5/BAND8
Sensitivity: <-104dBm
GPRS: Class 1,2, TCP/IP
Reception sensitivity: Class II RBER2% (-102dBm)
Memory: 32 + 32Mb
Phase error: RMSPE <5, PPE <20
Max. output: GSM850/GSM900: 33 ± 3dBm, GSM1800/GSM1900: 30 ± 3dBm
Max. frequency error: ± 0.1ppm
GPS chip: MTK highly sensitive
Frequency: GPS L1, 1575.42MHz
GPS channel: 66
Location accuracy: <10 meters
Tracking sensitivity: -165dBm
Sensitivity: -148dBm
GPS antenna: GPS ceramic antenna
Operating temperature: -20° ～ 70 ℃
Standard: IP65
Battery: 3 800mAh
Standby: up to 60 days
Dimensions: 200mm (width) x 104mm (height) x 43mm (thickness)
Weight: 370g



Package contents:

1x GPS locator Profio GPS L-10
1x Battery 3800 mAh battery
1x Screws set
1x Manual
