DVR Recorder with 16 inputs, real time 960H, VGA, HDMI
| Manufacturer |
|
|---|---|
| Products availability | pre-order |
| Delivery time 1 - 3 weeks. | |
Yes! We Ship To
|
|
| Price excl. VAT | U$ 246.59 |
| Price incl. VAT | U$ 295.90 |
Accessories
1TB 3.5" SATA Hard Drive for CCTV U$ 141.90
2TB 3.5" SATA HDD for CCTV U$ 185.90
HDD for CCTV - 4TB 3.5" SATA U$ 372.90
1 meter HDMI cable plug to plug U$ 5.50
15 m HDMI cable plug to plug U$ 60.50

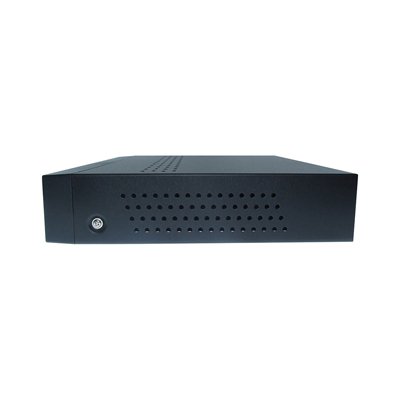

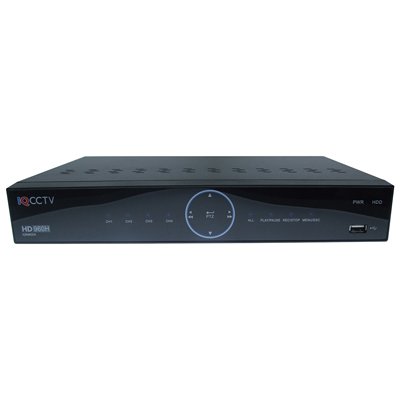

Product description DVR Recorder with 16 inputs, real time 960H, VGA, HDMI
16 inputs DVR recorder - is the latest from IQCCTV and offers 960H High Definition recording in almost real time. The DVR also has VGA and HDMI outputs. Model has several modes of alarm recording, supports HDD and manages inputs of video alarms. Back up of files is fast and easy with built-in USB port.
IQR960D16 offers recording in HD 960H, WD1, and WHD1 WCIF almost in real time and supports PTZ cameras via RS - 485 for easy operation and setup. The DVR is equipped with On Screen Display (GUI) and can be controlled using the new touch pad, remote control or mouse (both are supplied as standard).
Features:
• H.264 video compression
• Supports the following recording resolutions: CIF, HD1, D1, HD960H, WCIF, WHD1 & WD1
• 16 channel video and 2 channel audio (microphone available separately)
• HDMI, BNC and VGA outputs
• Simple operation via USB Mouse, touch panel, remote control, or network
• Easy backup to USB flash driver, or via the Internet
• Smart Phone and Tablet Access via our free App IQCMS
• Remote/Network access from PC and Mac
• Intelligent motion detection starts recording only at movement and starts instantly sending email alerts including images
Technical specifications:
Brand: IQCCTV
Model number: IQR960D16
Video Compression: H.264
Video system: NTSC / PAL

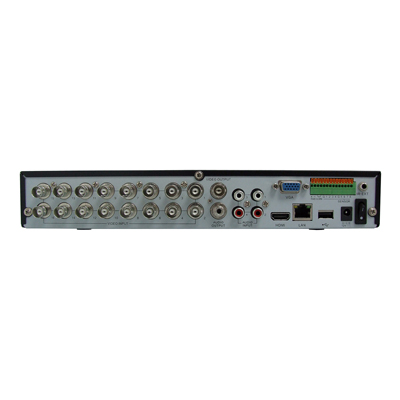

Video input/output: 16 CH Input, 1 BNC, 1 VGA, 1 HDMI
Spot output: No
Audio Input/Output: 2 CH Input, 1 CH output (RCA)
Display resolution: PAL: 960x576 @ 25fps, NTSC: 960x480 @ 30fps
Display features: Single, Quad, SEQ
Recording Resolution: PAL: D1 mode: 360x288 (CIF), 720x288 (HD1), 720x576 (D1), 960H mode: 480x288 (WCIF), 960x288 (WHD1), 960x576 (WD1) NTSC: D1 mode: 360x240 (CIF), 720x240 (HD1), 720x480 (D1), 960H mode: 480x240 (WCIF), 960x240 (WHD1), 960x480 (WD1)
Recording speed: PAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 frames per second
Recording Mode: Continuous / manual / motion detection
Playback channels: 1/4 Ch
Playback speed: PAL: D1 Mode / 960H Mode: 25fps, NTSC: D1 Mode / 960H mode: 30 frames per second
DVD - RW: No
Sensor & Alarm I / O: No
IR Extender Port: No
Network: LAN, DHCP, Dynamic IP & DDNS
HDD Interface: 1 SATA HDD, up to 4TB
Multiplex operation: live niew, record, playback, backup and network
USB: 2 x USB (for mouse and backup/upgrade)
PTZ Control: Built-in RS485, support Pelco - P and Pelco - D
Mobile Surveillance: IQCMS - Android and iOS
CMS Software 64 CH DVR 256 pieces, no limit for user
Web browser: Internet Explorer, Safari, Chrome, Firefox
VGA: 800 * 600, 1024 * 768, 1280 * 1024, 1440 * 900, 1920 * 1080
HDMI 1080p
Power supply: 12V DC 2000 mA
Fan: No
On/Off Switch: No
Remote Control: Yes
Rack Mount Size in (U): 1
Dimensions (WxHxD): 301x46x210mm
