Reversing AHD set - 5" 2CH monitor + HD IR camera

Product description Reversing AHD set - 5" 2CH monitor + HD IR camera

Reversing AHD/CVBS HD camera set - 5" hybrid 2CH car monitor + HD camera with 11 IR LED night vision. Parking camera with monitor is a system designed for moving vehicles in difficult and confusing situations in any terrain. The camera from the PROFIO ELECTRONICS brand has AHD resolution 720p (1280x720 pixels) thanks to which you can see all the details clearly and sharply. AHD camera with really very small dimensions of only 55x55x55 mm will take care of quality images not only during the day, but through night vision with 11 IR LEDs you can see well when reversing in nights.

The size of the LCD screen makes this set an ideal helper when reversing. This AHD system is a combination of the best technology that is developed for van, minibus, caravan, bus, truck, semi-trailer, tractor, harvester and other agricultural or construction machinery and vehicles. You will especially appreciate the AHD system when installed on larger motor vehicles, where you need more views from different angles.

Possibility to connect up to 2 cameras with the possibility to choose the order of camera display.

The monitor allows switching between two cameras (separately displayed image from one or the other camera).

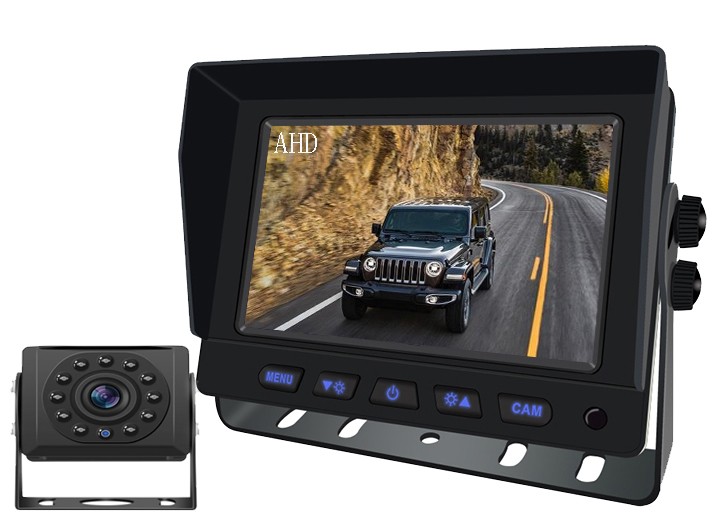

Parking camera with car monitor 5"

Thanks to this system, you will know exactly what is behind or around the vehicle. The reversing AHD/CVBS set contains a hybrid LCD monitor 5"+ 1x camera with IR night vision + 1x (5m, 10m, 15m, or 20m cable), which is included in the price of the set and you can choose it according to your needs (write note when ordering). The AHD set is exceptional not only in terms of image quality but also that you can connect up to 2 AHD cameras to the monitor at the same time.This reversing set has a wide range of uses.  The IP degree of protection of the camera is up to IP 68, what means that it is resistant to water, mud, dust and mechanical damage.

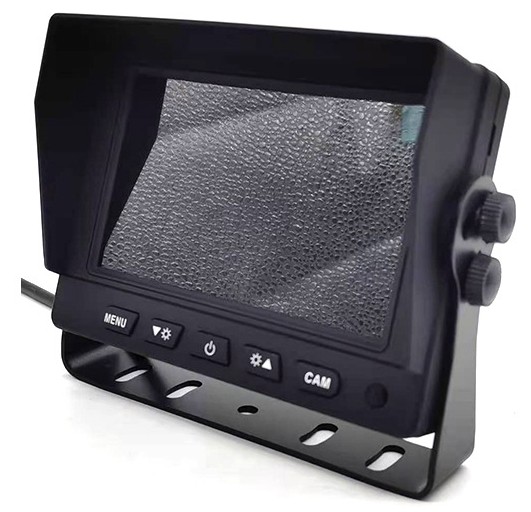

Compact hybrid 5-inch car reversing monitor for 2 car cameras with AHD or CVBS signal + remote control. A new generation of parking system that brings you a clear, sharp image during the day, even in low light conditions and all the necessary technical means for the safe operation and control of motor vehicles and machines. The monitor allows switching between two cameras, (separately displayed image from one or the other camera). When reverse gear is engaged, the image automatically switches to the rear view camera (channel 2), where the guide lines are also displayed, that can be turned on or off in the monitor menu. The mirroring of the image of the selected camera is a matter of course. The package also includes a remote control, for even easier control of the monitor. The hybrid monitor supports mixed input AHD 720P/960P/1080P/CVBS signal in multiple video formats as well as PAL/NTSC frequencies.

Up to 2 cameras can be connected to the monitor - AHD or CVBS. Depending on the need and type of vehicle, you can choose and combine cameras from our offer to meet your requirements. The cameras are connected to the monitor via 4pin cables. The monitor has cables for connecting the cameras and powering the monitor. The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to the source, what simplifies installation and you can place the camera anywhere in the vehicle. The monitor also includes switching cables through which you can connect the camera to the reversing lights. When reverse gear is engaged, the reversing camera will automatically appear on the monitor. The second input on the monitor can be, in addition to the camera, used e.g. on DVD/VCR.

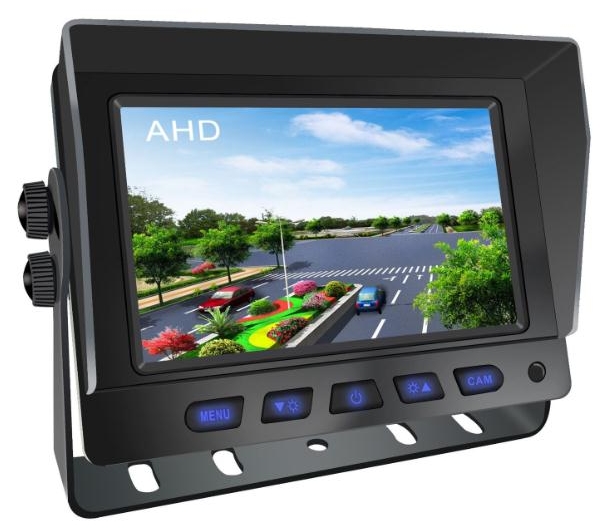

Hybrid monitor for reversing cameras - two AV inputs

In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windscreen or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.

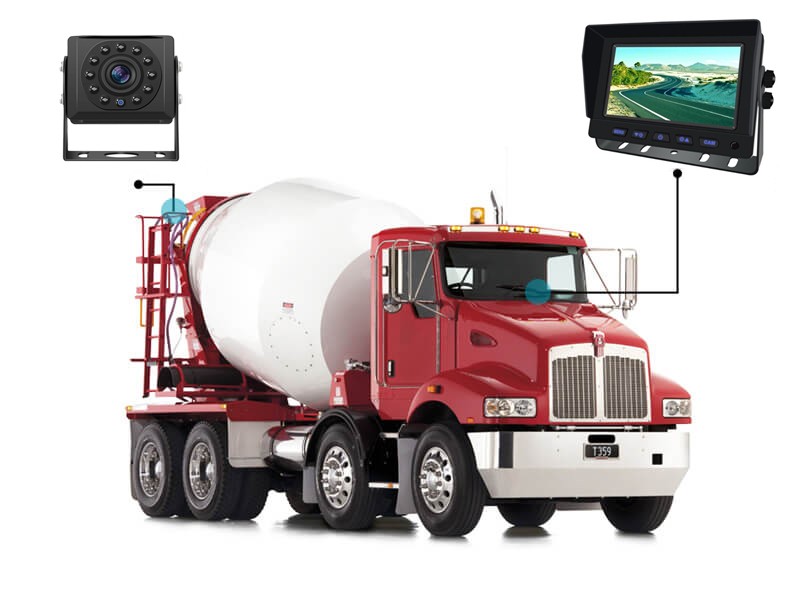

Use of a reversing camera with a monitor in HD resolution, also suitable for construction machinery

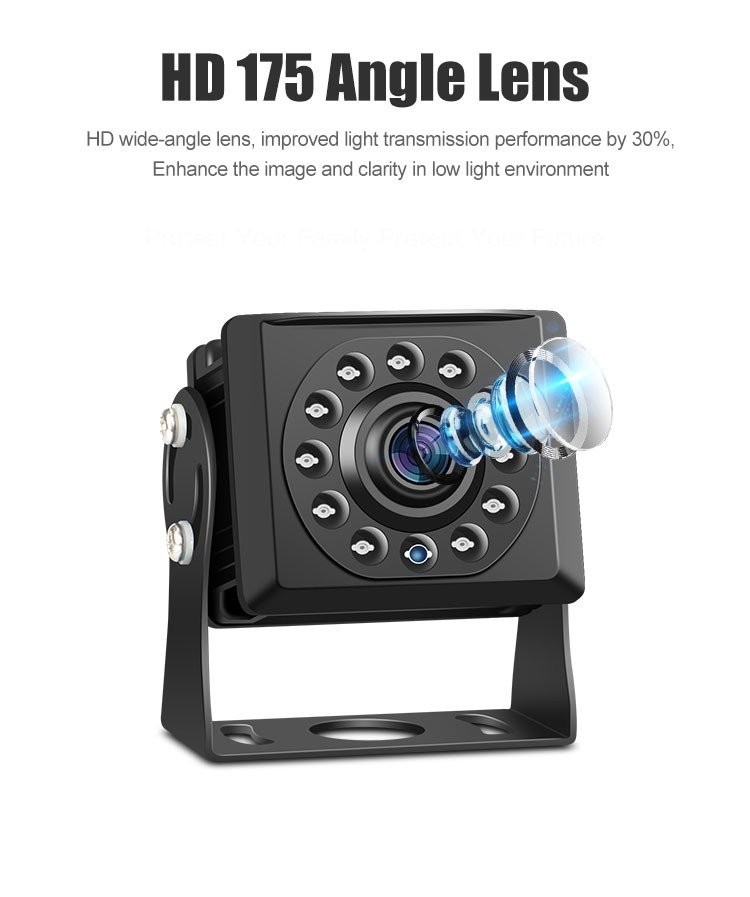

Mini reversing camera 55x55x55 mm with HD resolution 720P and night vision 15m - 11 IR LED and IP68 protection and 145° viewing angle. This powerful reversing camera is the right solution for monitoring the vehicle's surroundings. It gives you an overview of what is happening around the vehicle when it is moving or reversing. The reversing camera has night vision with 11 IR LEDs and a afterglow of 15 meters. The camera has a wide range of uses, as it is suitable for larger cars, vans, minibuses, buses, semi-trailers, trailers, agricultural machinery or trucks. The 1/4 CMOS image sensor with an HD resolution of 1280x720 pixels enables high-quality and sharp image transmission.

Mini car reversing cameras with IR LED

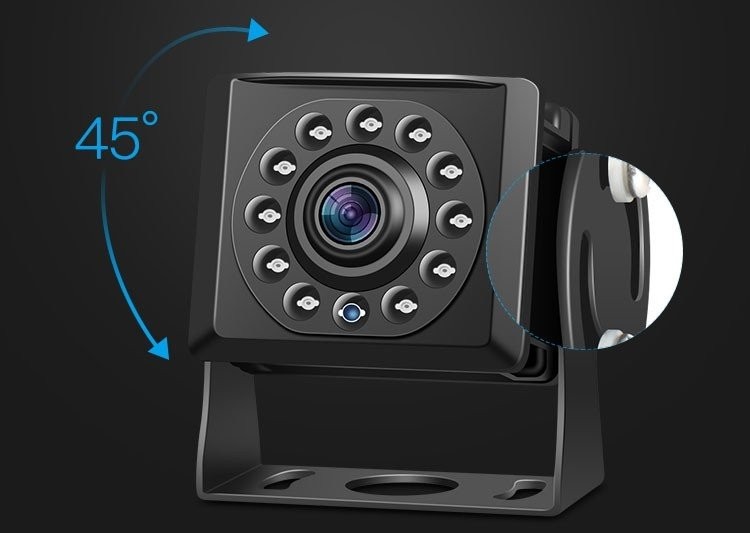

The reversing camera has a scanning angle of up to 145°, what is a sufficient range for the needs of reversing or monitoring the movement of the vehicle in an environment where increased attention is required in terms of safety. This HD camera meets the degree of protection IP68 which makes it waterproof, dustproof and resistant to mechanical damage. The camera body itself is protected by a durable alloy case. The camera can be installed on various surfaces, what is possible using a metal bracket, thanks to which you can tilt it and fix it to the desired position. The power supply of the camera and signal transmission is via a high-quality, shielded connector with a 4-pin terminal, which has a waterproof finish, what will make your work easier during installation. The camera is powered directly from the reversing monitor with a voltage of 12-24V.



Hybrid AHD/CVBS 5  "LCD monitor
Possibility to connect up to 2 reversing cameras
Night vision up to 15m
Camera viewing angle 145°
Possibility to switch between two cameras on the monitor
Display resolution 1080x720px

Monitor technical specifications:

Model: PROFIO-W50
Monitor: 5" LCD screen
System: PAL/NTSC 50/60Hz
Aspect ratio: 16:9/4:3
Monitor resolution: 800x480 RGB
Display visibility: 70° from each side
Compatible signal: AHD720P / 960P / 1080P / CVBS signal (AHD + CVBS signal)
Inputs: 2x AHD / CVBS channel (AV1 for DVD, VCR or other device in the car, AV2 for reversing camera - when reverse gear is engaged, the picture automatically switches to AV2)
Luminosity: 500cd/m2
Recording: no
Display layout: 1/2 camera
Possibility to adjust the OSD: brightness, contrast, volume, language
Power supply: DC 9-32V
Audio input: yes 1x
Connector: 4pin connector
Color: black
Remote control: yes
LCD display dimensions: 14 x10 x 2,5 cm
Sun visor: yes

Camera technical specifications:

Image sensor: CMOS 1/4"
Resolution: HD 1280x720 (500 TV lines)
System: PAL / NTSC
Minimum lighting: 0 LUX (IR on)
IR night vision: yes 11 IR LEDs
Night vision distance: 15 m
Viewing angle: 145°
IP degree of protection: IP 68 waterproof, dustproof, resistant to damage
Power consumption: 3W
Working temperature: -20 to 70 ° C
DC power supply: 12-24V
Interface: RCA
Dimensions: 55x55x55 mm

Package contents:

1x Hybrid AHD/CVBS 5" LCD monitor
1x AHD reversing camera
1x Connecting cable 5m, 10m, 15m, 20m of your choice
1x Remote control
1x Sun visor
1x Monitor mounting bracket
1x Bracket for mounting the camera
1x Manual

You can choose the length of cables according to your needs 5m, 10m, 15m and 20m. Specify the cable length in the order note.
