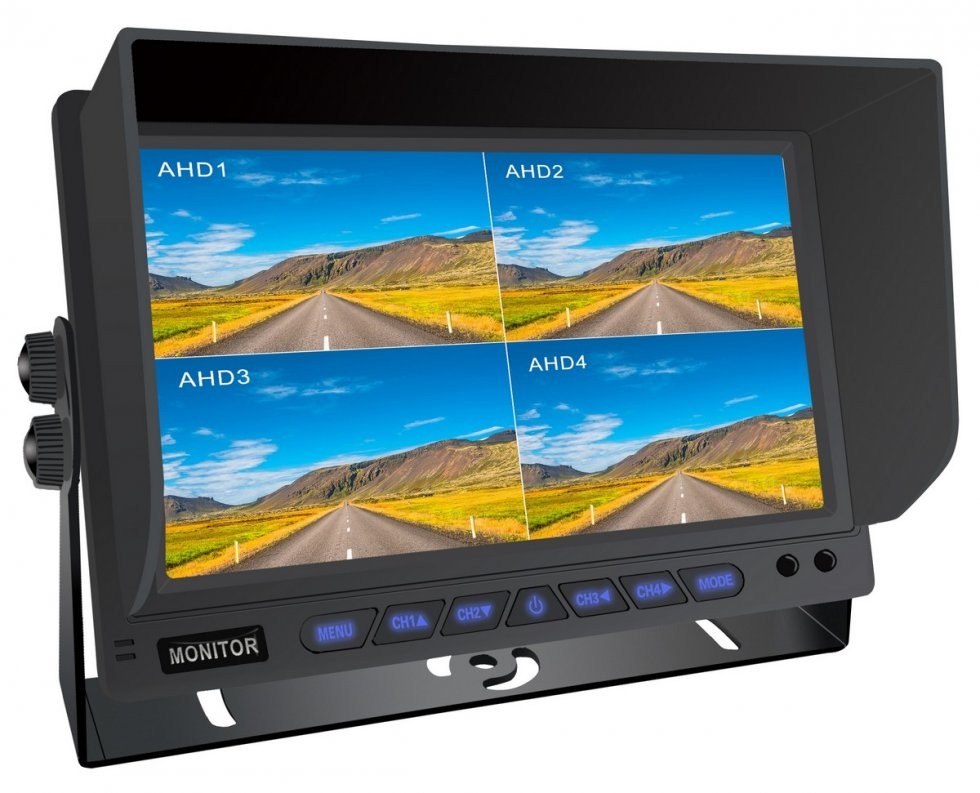

8CH hybrid 10" reversing HD car monitor AHD/ CVBS / FULL HD / HD cameras

new

Manufacturer
Products availability	in stock
Products are in stock, ready to send.
Yes! We Ship To
Price excl. VAT	U$ 275.00
Price incl. VAT	U$ 330.00

Quantity - +

Product description 8CH hybrid 10" reversing HD car monitor AHD/ CVBS / FULL HD / HD cameras

8CH hybrid 10" reversing HD car monitor AHD/ CVBS / FULL HD / HD cameras - SD card support up to 512GB. Possibility to connect up to 8 types of cameras with recording to an SD card up to 512GB. New generation of parking system, which brings you a clear, sharp image during the day, even in poor lighting conditions and all the necessary technical means for the safe operation and control of motor vehicles and machines. The monitor allows you to switch different variants of the camera display, depending on how many cameras you have connected and which you want to be displayed as the main one.

The monitor can display all 8 cameras at once

The reversing monitor contains a menu in which you have various options for setting the LCD monitor and the cameras connected to it. Recording function - the monitor also serves as a DVR recorder for recording from cameras - it is saved on an SD card, which is supported up to 512 GB in size. The package also includes a remote control for even easier control of the monitor. The hybrid monitor supports mixed input AHD 1080P / AHD 720P / 960H / CVBS in multiple video formats and also PAL/NTSC frequencies.

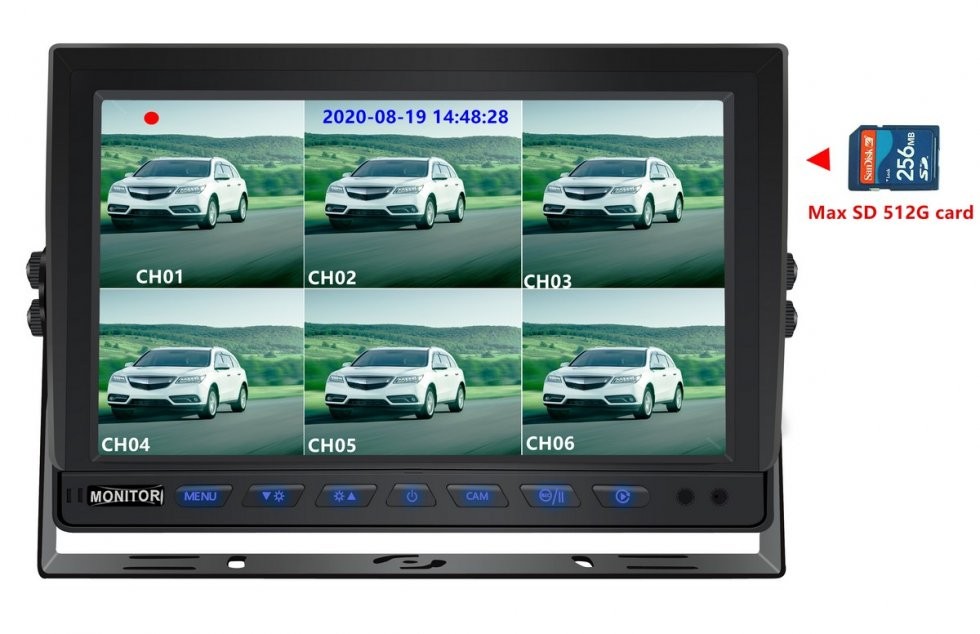

The recording from the cameras is saved on an SD card, which is supported up to a capacity of 512 GB.

On the cameras can be set the image mirroring via the monitor, or the reversing guide lines can be switched on when reverse gear is engaged (in this case, it is necessary to connect the switching cables for the individual cameras to the reversing light - switching cables are available for 4 cameras). The reversing monitor offers several camera display options, so you can choose the one that suits you best. With this system, you will know exactly what is behind the vehicle or around it. It is suitable for vans, minibuses, caravans, buses, trucks, semi-trailers, agricultural machinery and other vehicles. The monitor is equipped with an adjustable bracket that you attach to the necessary place and a sun visor. Different picture settings can be adjusted independently for each video input signal.

The possibility of connecting up to 8 cameras with the option of choosing the order of displaying cameras.

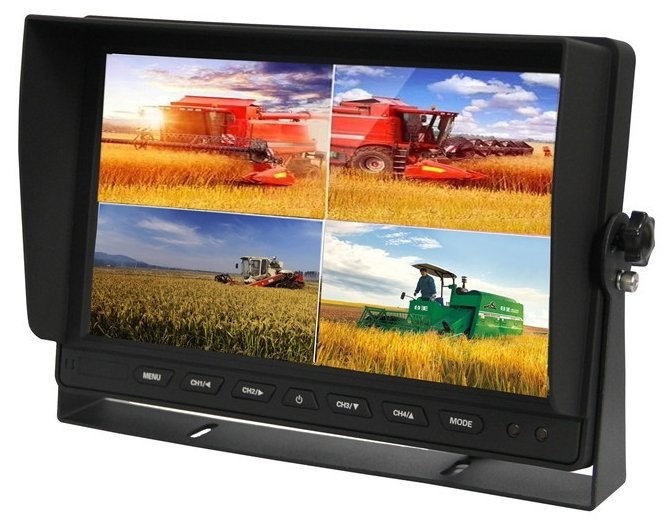

Individual cameras can be displayed next to each other, or the displaying of cameras on the monitor can be combined as needed.

Hybrid monitor for reversing cameras with image recording from 8 cameras

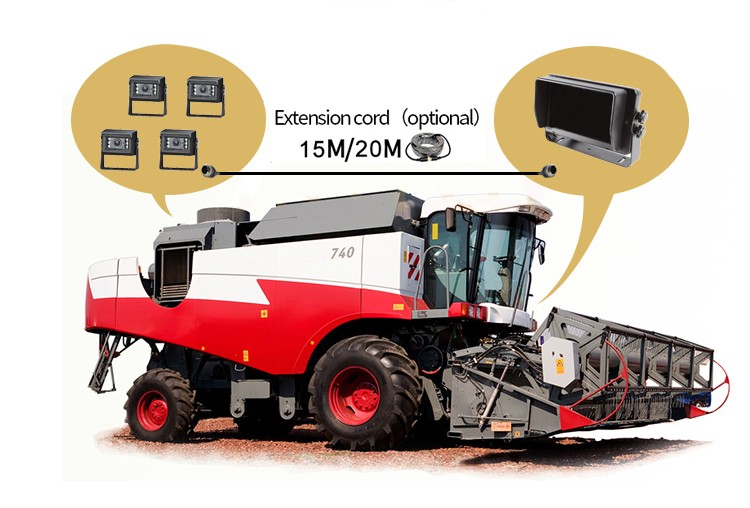

Up to 8 cameras - AHD or CVBS - can be connected to the monitor. According to the need and type of vehicle, you can choose and combine cameras from our offer so that they meet your requirements. The cameras are connected to the monitor via 4pin cables. The monitor has cables for connecting cameras and powering the monitor. The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to a source, which simplifies installation and you can place the camera anywhere on the vehicle. The monitor also includes 4 switching cables, through which you can connect the selected cameras to the reversing lights. After engaging the reverse gear, the selected camera will automatically appear on the monitor. Support of cyclic video recording and parking standing (24-hour parking monitoring function).

If you need to mount the monitor in a different way than with the bracket that is part of the monitor, you will find in our offer three other types of stands that will allow you to mount the monitor, for example, on the windshield or in the place where you need it. If you need to put a camera on a trailer that is disconnected from a car or truck, you can buy a connecting cable for a reversing camera for trailers and semi-trailers from us. This will guarantee easy disconnection of the reversing system and its reconnection.

Features:

10,1 inch reversing monitor
Recording on micro sd
Wide setting options in the display menu
Possibility to connect up to 8 cameras
Various camera display options

Technical specifications of the monitor:

Monitor: 10,1" HD screen
System: PAL/NTSC 50/60Hz
Aspect ratio: 16:9
Monitor resolution: 1024 x 600 RGB
Video resolution: 1920x1080 pixels
Video compression: H.264
Display visibility: 180° from each side
Video resolution when recording: 1280x720P, 1280x960P, 960H
Compatible signal: AHD 720P@25/30, 960P@50/60, 1080P@25/30, CVBS 960H
Inputs: 8x AHD/CVBS channels
Backlit buttons: yes, blue light
Brightness: 500cd/㎡, 500:1
Recording: yes, 8 channels
Loop recording: yes
Display layout: 1/2/3/4/6/8 cameras
Video format: AVI
Memory: support SD card class 10, up to 512 GB (memory card is not included in the package)
Option to adjust OSD: brightness, contrast, volume, language
Power supply: DC 12-36V (voltage 13V is required for powering the camera as well)
Output voltage: DC +11,5V/3A
Audio input: yes 1x
Connector: 4pin connector
Color: black
Remote control: yes
Dimensions: 25 x 17 x 3,5 cm
Sun visor: yes, detachable
Operating temperature: -20 to 70°C

Package contents:

1x 10,1" LCD monitor
1x Console for mounting the monitor
2x Cable with 4 inputs for cameras
1x Remote control
1x Set of screws
1x Manual
