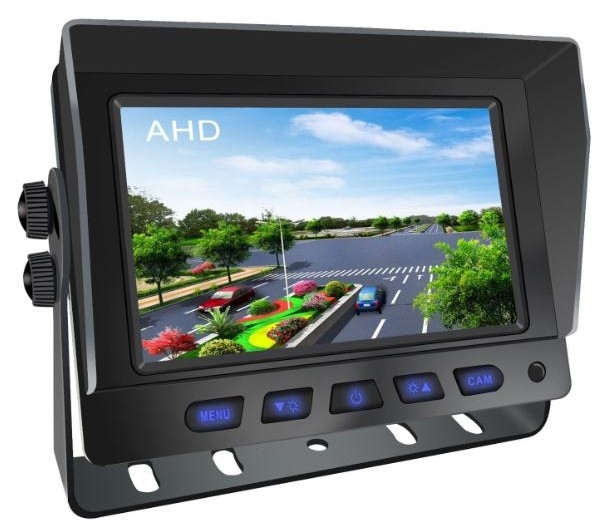

2 channel hybrid reversing 5" car monitor AHD/CVBS

Product description 2 channel hybrid reversing 5" car monitor AHD/CVBS

2 channel hybrid reversing 5" car monitor AHD/CVBS. Car monitor for comfortable reversing for 2 car cameras, with remote control. Hybrid monitor supports mixed input AHD 720P / 960P / 1080P / CVBS signal in several video formats as well as frequencies PAL/NTSC. A new generation of parking system, which brings you a clear, sharp image during the day, even in low light conditions and all the necessary technical means for safe operation and control of motor vehicles and machines. The monitor allows switching between two cameras, (separately displayed image from one or the other camera). When reverse gear is engaged, the image automatically switches to the rear view camera (channel 2), where the guide lines are also displayed, that can be turned on or off in the monitor menu. The package also includes a remote control, for even easier control of the monitor. The hybrid monitor supports mixed input AHD 720P/960P/1080P/CVBS signal in multiple video formats as well as PAL/NTSC frequencies.

Car monitors (reversing or parking) - 5"

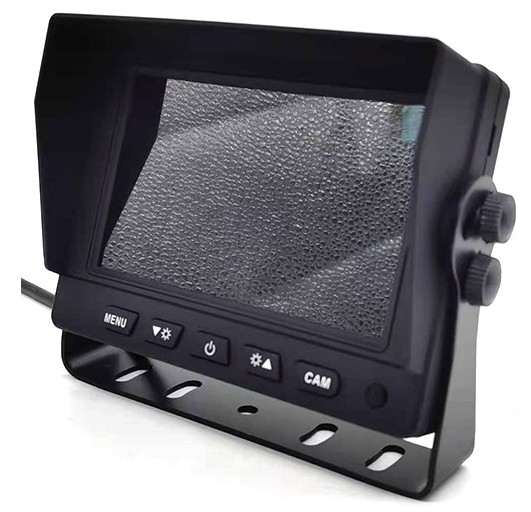

On each camera, you can set for example image mirroring via the monitor, or turn on the reversal guides, which you can precisely calibrate for each camera separately in the menu. With this system you will know exactly what is behind or around the vehicle. It is suitable for cars, vans, minibuses, caravans, buses, trucks, semi-trailers, agricultural machinery and other vehicles. The monitor is equipped with an adjustable bracket that you attach to the required place and a sun visor.

Hybrid monitor for reversing cameras - two AV inputs

It is possible to connect 2 cameras to the monitor - AHD or CVBS. Depending on the need and type of vehicle, you can choose and combine cameras from our offer to meet your requirements. The cameras are connected to the monitor via 4pin cables. The monitor has cables for connecting the cameras and powering the monitor. The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to the source, which simplifies installation and you can place the camera anywhere in the vehicle. The monitor also includes switching cables through which you can connect the camera to the reversing lights. When reverse gear is engaged, the reversing camera will automatically appear on the monitor. The second input on the monitor can be, in addition to the camera, used e.g. for DVD/VCR.

Car monitor for comfortable reversing

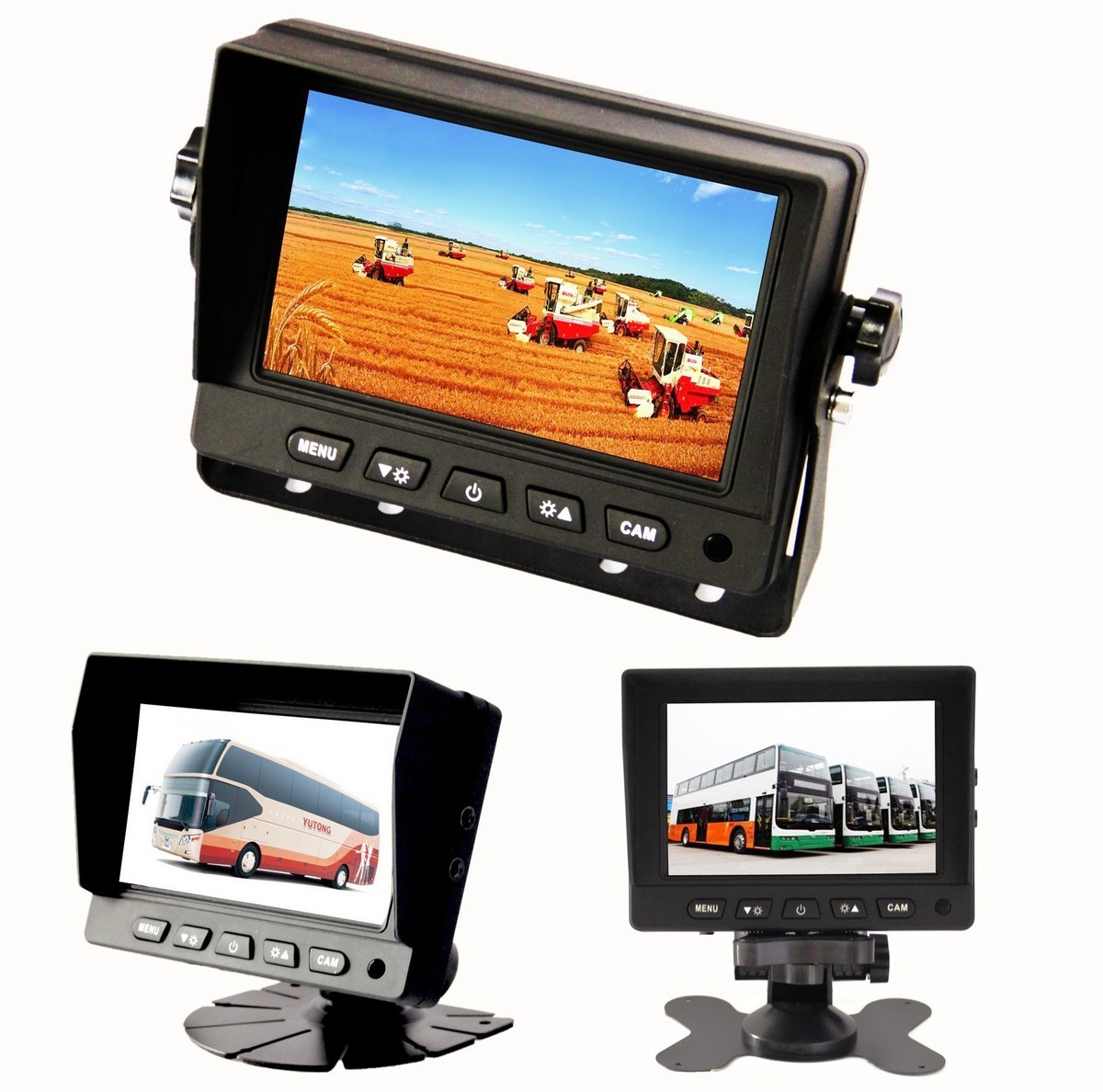

In case you need to mount the monitor in a different way than with bracket (what is included in package), you can find in our offer another three more types of stands which allow you to attach your monitor for example onto a windscreen or where is needed. In case you need to put the camera on a trailer that is able to remove from the car or truck, you can buy in our e-shop a connecting cable of reversing camera for trailers and semi-trailers. This ensure easy disconnection of the reversing system and re-connection.



Features:

5 inch reversing monitor
for both AHD and CVBS signal
Wide range of settings in the display menu
Possibility to connect 2 cameras
Various camera display options



Monitor technical specifications:

Model: PROFIO-W50
Monitor: 5" LCD screen
System: PAL/NTSC 50/60Hz
Aspect ratio: 16:9/4:3
Monitor resolution: 800x480 RGB
Display visibility: 70° from each side
Compatible signal: AHD720P/960P/1080P/CVBS signal (AHD + CVBS signal)
Inputs: 2x AHD/CVBS channel (AV1 for DVD, VCR or other device in the car, AV2 for reversing camera - when reverse gear is engaged, the picture automatically switches to AV2)
Luminosity: 500cd/㎡
Recording: no
Display layout: 1/2 camera
Possibility to adjust the OSD: brightness, contrast, volume, language
Power supply: DC 9-32V
Audio input: yes 1x
Connector: 4pin connector
Color: black
Remote control: yes
LCD display dimensions: 14 x10 x 2,5 cm
Sun visor: yes

Package contents:

1x 5" LCD monitor
1x Monitor mounting bracket
1x Cable with 2 inputs for cameras
1x Remote control
1x Set of screws
1x Manual
